Electrical Battery Molex Terminal Ring Charging Cable Wiring Harness

Short Description:

【Easy to Install】 Molex Extension Cable can be plugged in an ordinary power. The process is easy and convenient;
【Wide Application】 Ring & Molex Terminal Harness Accessory Cable can be Widely used in solar panels, automotive, motorcycles, energy storage battery, ATV, RV and other equipment that requires Molex plugs;
【Package Contect】 170*140mm Transparent opening PE seal pocket thickness 0.08mm;
【Best Service】If you have any problem with Molex Quick Disconnect Wire Harness, Please contact us as soon as possible. We promise you will get a 100% satisfactory solution.

Cable/Connector: Custom

MOQ: 300 Pieces

Supply Ability: 10000 Pieces per day

Factory Cartificate : ISO9001/ UL/ IATF16949

Our Advantage : Cable Assembly, one stop solution for any custom project

Cable: UL2468/22AWG*2P red and black lines

Send email to us

Product Detail

Product Tags

* If that isn't what you want, please send us your request direcrty.
* We Custom Made Production Wiring Harness according to your request. Including add your logo and custom package.

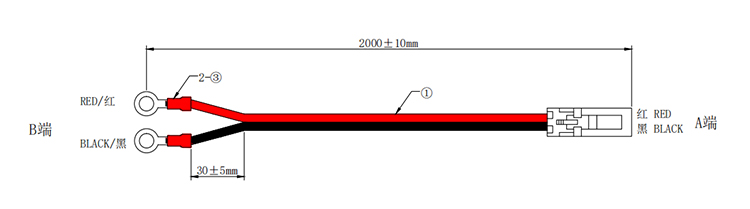

1	UL2468/22AWG2P red and black lines 80℃ 300V OD=1.73.5±0.1mm
2	HX25418-2Y black housing+HX25418-PT Terminal
3	RV1.25-4S Red cord end terminal T0.7mm
Package	170*140mm Transparent opening PE seal pocket thickness 0.08mm
Withstand Voltage	AC300V/1mA
Insulation	DC300V/10MΩ
Conduction Impedance	≤400mΩ

The Terminal Harness Accessory Cable can be Widely used in solar panels, automotive, motorcycles, energy storage battery, ATV, RV and other equipment that requires Molex plugs;
