ST12 Waterproof Cable Connector 2Pin IP67 Metal Threaded Circular Aviation Power Connector Solder Electrical Wire Plug Socket 12mm

Short Description:


  • Cable/Connector: Custom
  • MOQ: 300 Pieces
  • Supply Ability: 10000 Pieces per day
  • Product Detail

    Product Tags

    Short Description

    Circular connectors, due to their high performance in extremes of vibration, shock, temperature, pressure, and interference (EMI & RFI) are finding increased use in many industrial applications requiring electric power transmission, signal transmission, data transfer, and mixed signal transmission (power + signal )


    1 SF1212S6

    SF1210/S_ SF1212/P_ 2 3 4 5 6 7 9 pin Waterproof Connector, auto Electric Plug-Female Socket Male Aviation Screw Panel Mount Soldering connectors (Female Plug (SF1210/S_)


    Product Application :

    Medical Equipment
    Test and laboratory equipment
    Measuring instruments
    Data transmission and communication systems
    Audio and video transmission
    Military Security
    Industrial control
    Nuclear industry

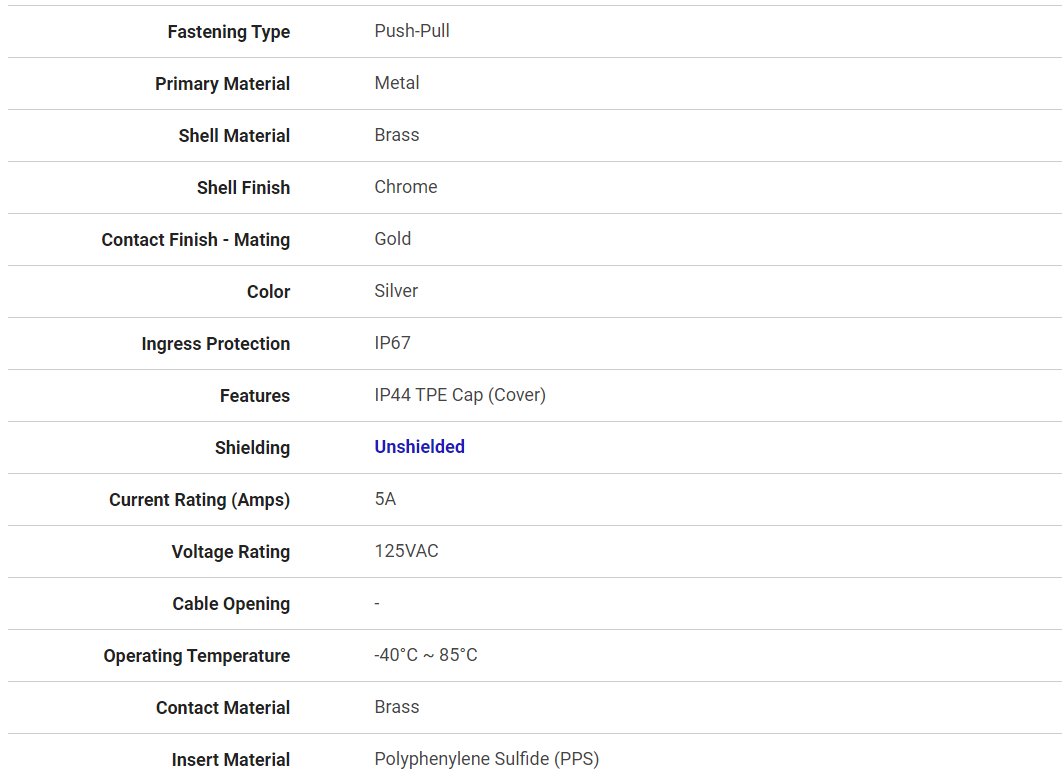

    Products Details:

    Product approvals: ROHS and VDE compliant.
    8 sizes:
    The Metal Series is available in 8 sizes
    Outer diameter range: 6. 5mm-42mm
    Number of cores: 1-40 cores, mixed insulators available
    Multiple termination types:
    Plugs and sockets are available with soldering and crimping options.
    Sockets are available with soldered, crimped and PCB connections.

    • Plug-female, socket-female aviation cable connector ; Model: WEIPU SF1210/S_,SF1212/P_
    • Waterproof Level : IP67; Rated Current / Voltage : 3-13A/ 180-250V; Withstand Voltage: AC 1000-1500V
    • Panel Thread Diameter: 12mm; Material : Zinc alloy; Contact, Solder Termination
    • Aviation Connector, IP67 Waterproof, Push-Pull,Gold Plated Chrome Brass Conatct, Solder Termination, Screw Locking
    • Widely used in data acquisition systems, inclinometer, computer automation measurement and control systems, mechnical equipment, audio/video, communications, automotive and other industries
